Soluble Salt Meter (SSM) ready for curved surfaces

Soluble salt measurements with the Bresle patches is an expensive, tedious and difficult task. Differences in results lead to discussions and reasons for concern in the field.

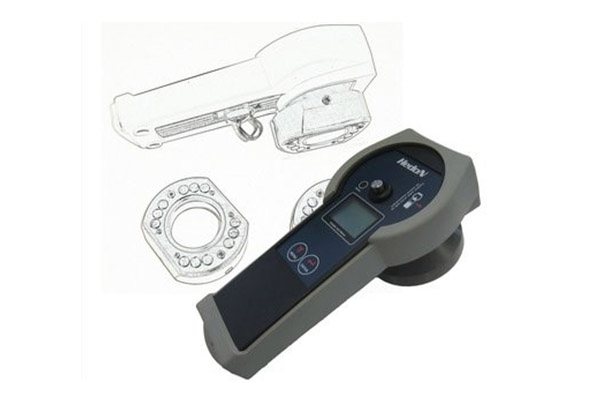

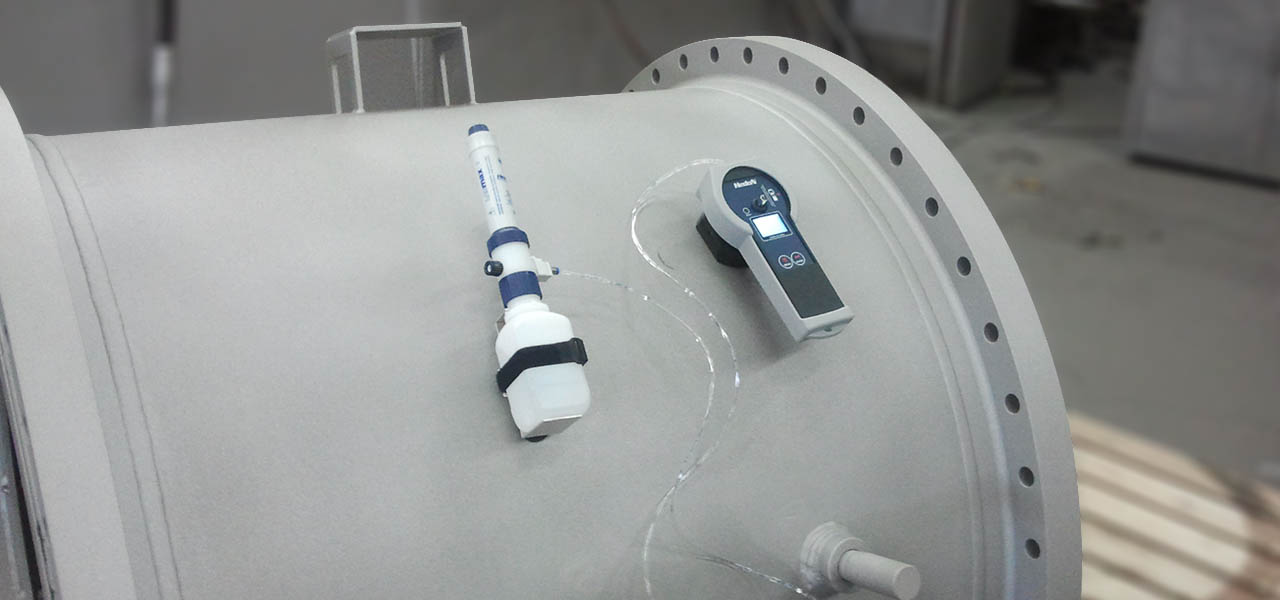

The SSM is a patented design that provides a paperless, hand held, automated method for detection of soluble salts on flat and curved surfaces from 8” and upwards.

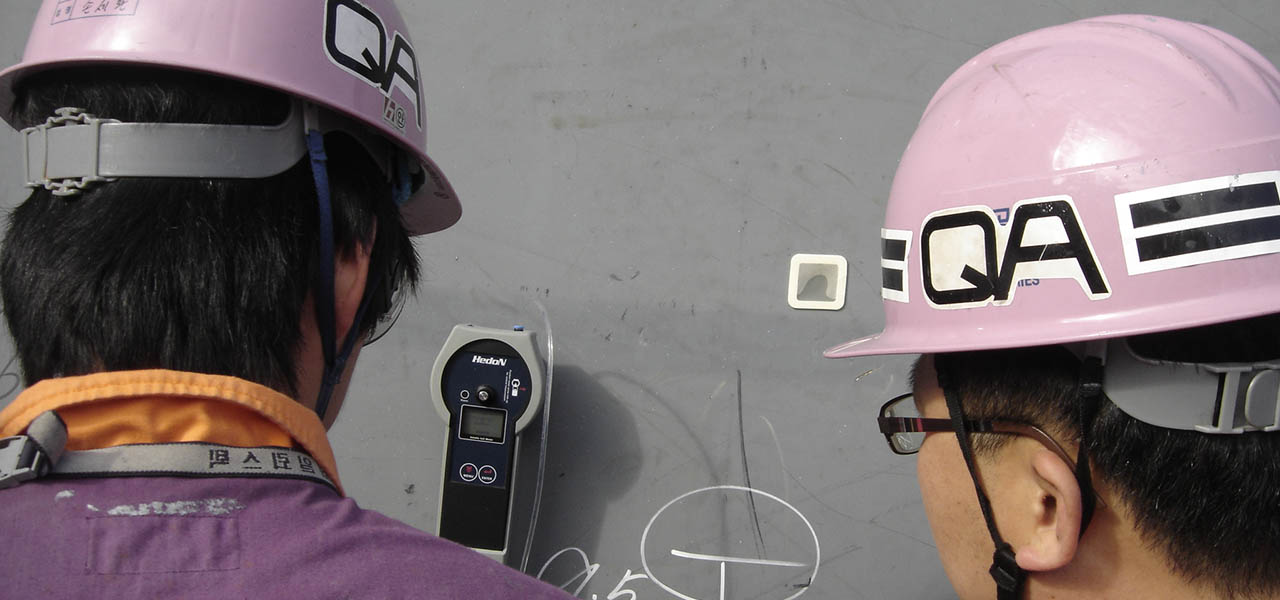

The SSM combines surface salt extraction and conductivity measurement in one tool, allowing convenient and ergonomic operation. The hand held design provides a self-contained, easily transportable, unit for soluble salt measurements. The SSM and supplied fluid dispenser allow for quick and accurate injection of deionised water, automatic extraction of surface salts and conductivity measurement. The SSM is complete with a backlit LCD display and easy to follow on screen instructions. Up to a 1000 measurements can be stored in the internal memory. This data can be downloaded to any PC and exported in Microsoft® Excel file format for use in any Coating Technical File (CTF) using the supplied software.

The SSM is developed as a direct replacement for the Bresle patch inspection method (ISO 8502-6). It has been validated in accordance with NACE standard SP0508-2008 and has demonstrated equivalence to ISO 8502-9 (the field method for the conductometric determination of soluble salts).

If you are a Bresle Patch user and think the SSM could be of interest to you, please contact us for more information.
